Fuel Level Sensor: Locations






Engine Code BPR (Metal Fuel Tank)

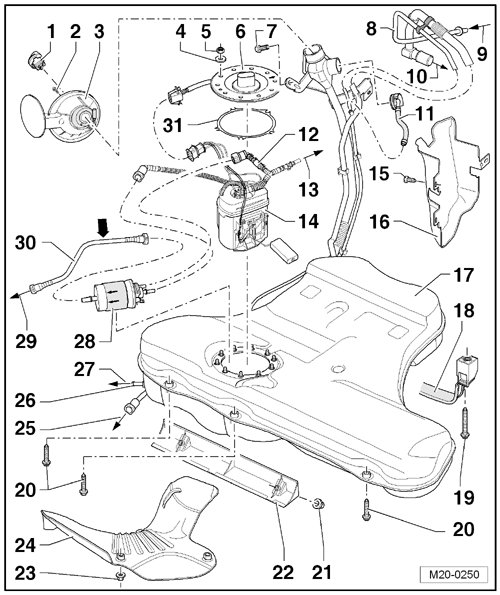

Fuel Tank and Attachments Assembly Overview





14 Fuel Delivery Unit

• Fuel level sensor removal and installation, refer to => [ Fuel Level Sensor ] Removal and Replacement.
