High Pressure Sensor, Multi-Pin Connector Assignments

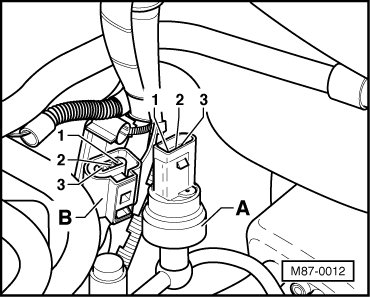

High Pressure Sensor, Multi-Pin Connector Assignments





• Contact 1: Ground (GND)

• Contact 2: Square wave signal (output) to Coolant Fan Control (FC) Module (J293) and Motronic Engine Control Module (ECM) (J220)

• Contact 3: Terminal 15 (ignition on)

• A/C Clutch (N25) is switched off when connector - B - is disconnected
