Procedures

Lock Carrier Service Position

- Remove front part. Refer to=> [ Front Part Assembly Overview ] Front Part Assembly Overview.





- Disengage hood release cable at lock.

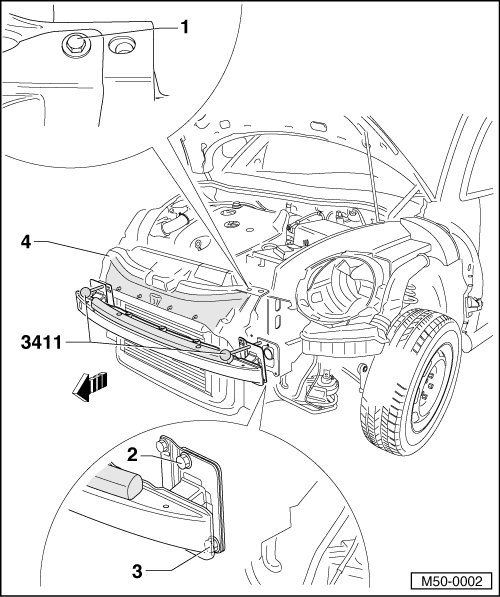

- Remove one bolt each - 2 - from longitudinal members and bolt in Support Tool (3411) at right and left longitudinal members for this.

- Remove bolts - 1 - and - 3 - at left and right and pull lock carrier toward front in area of Support Tool (3411).
