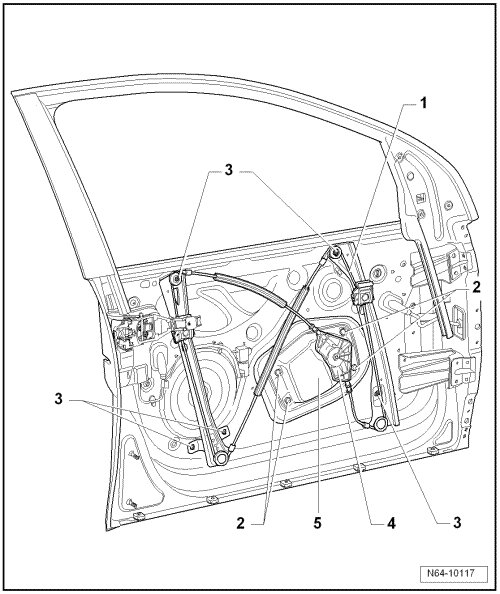

Window Regulator Assembly Overview

Window Regulator Assembly Overview






1 Window Regulator

• Removing and installing. Refer to => [ Window Regulator ] Window Regulator

2 Screw

• Qty. 4

• 8 Nm

3 Screw

• Qty. 5

• 8 Nm

4 Drive Motor

5 Mounting Plate
