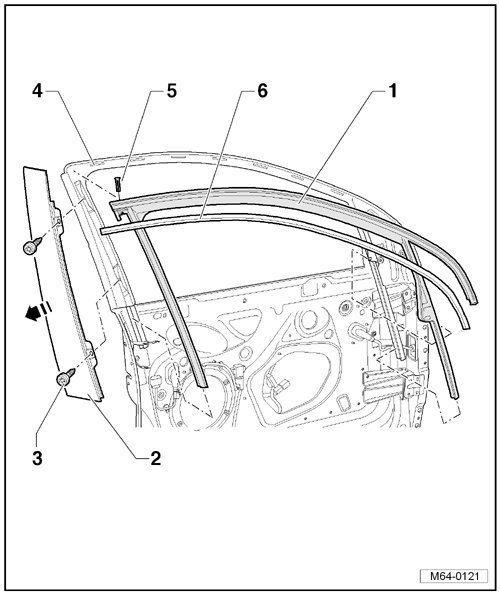

Window Guide Assembly Overview

Window Guide Assembly Overview

• For clarity, outer door panel is not depicted in the illustration.





1 Window Guide

2 Trim

3 Screw

• Qty. 2

• 2 Nm

4 Window Frame at Inner Door Part

5 Trim Molding Fastener

• Expanding rivet or bolt

6 Window Guide Trim Molding

• Depending on equipment

• Removing and installing. Refer to => [ Window Guide Trim Molding ] Window Guide Trim Molding
