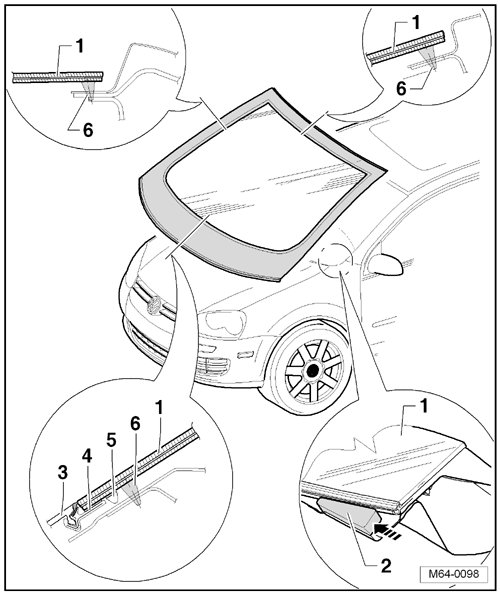

Windshield Assembly Overview

Windshield Assembly Overview






1 Windshield

• Removing and installing. Refer to => [ Windshield ] Windshield

2 Window Adjuster

• (443 845 631 A)

3 Plenum Chamber Cover

• Pull out of binding profile only by hand

• Removing and installing. Refer to => [ Plenum Chamber Cover ] Plenum Chamber Cover

4 Binding Profile

• Component of windshield

5 Spacer

• Component of windshield

6 PUR Adhesive Sealant

• Bead cross section: Width = 6.5 mm, height = 10 mm (including residual material on window glass and window flange)

• Minimum curing time. Refer to => [ Minimum Curing Time ] Minimum Curing Time
