Relay Carrier On Vehicle Electrical System Control Module

Relay, from November 2004

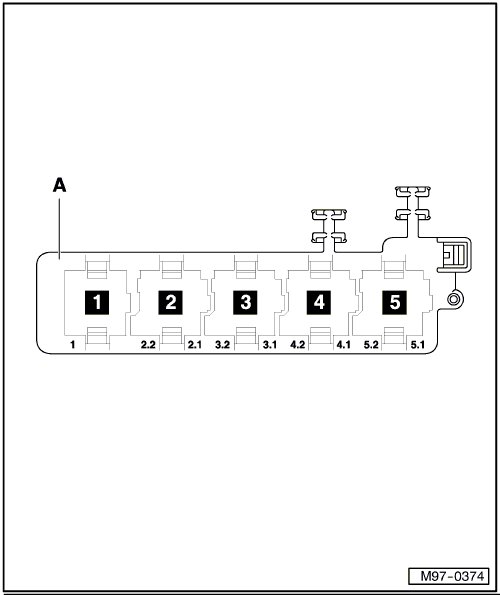

Relay Carrier on Vehicle Electrical System Control Module







1 - Power Supply Relay 2 (terminal 15) -J681- (643)
• Component Location 1

1 - Power Supply Relay (terminal 15) -J329- (643)
• Component Location 1

2 - Power Supply Relay 1 (terminal 75) -J680- (53)
• Component Location 2

3 - Dual Horn Relay -J4- (449)
• Component Location 3.1

3 - Not used
• Component Location 3.2

4 - Rear Window Defogger Relay -J9- (53)
• Component Location 4

5 - Power Supply Relay (terminal 50) -J682- (643)
• Component Location 5
