Instrument Cluster Control Module J285

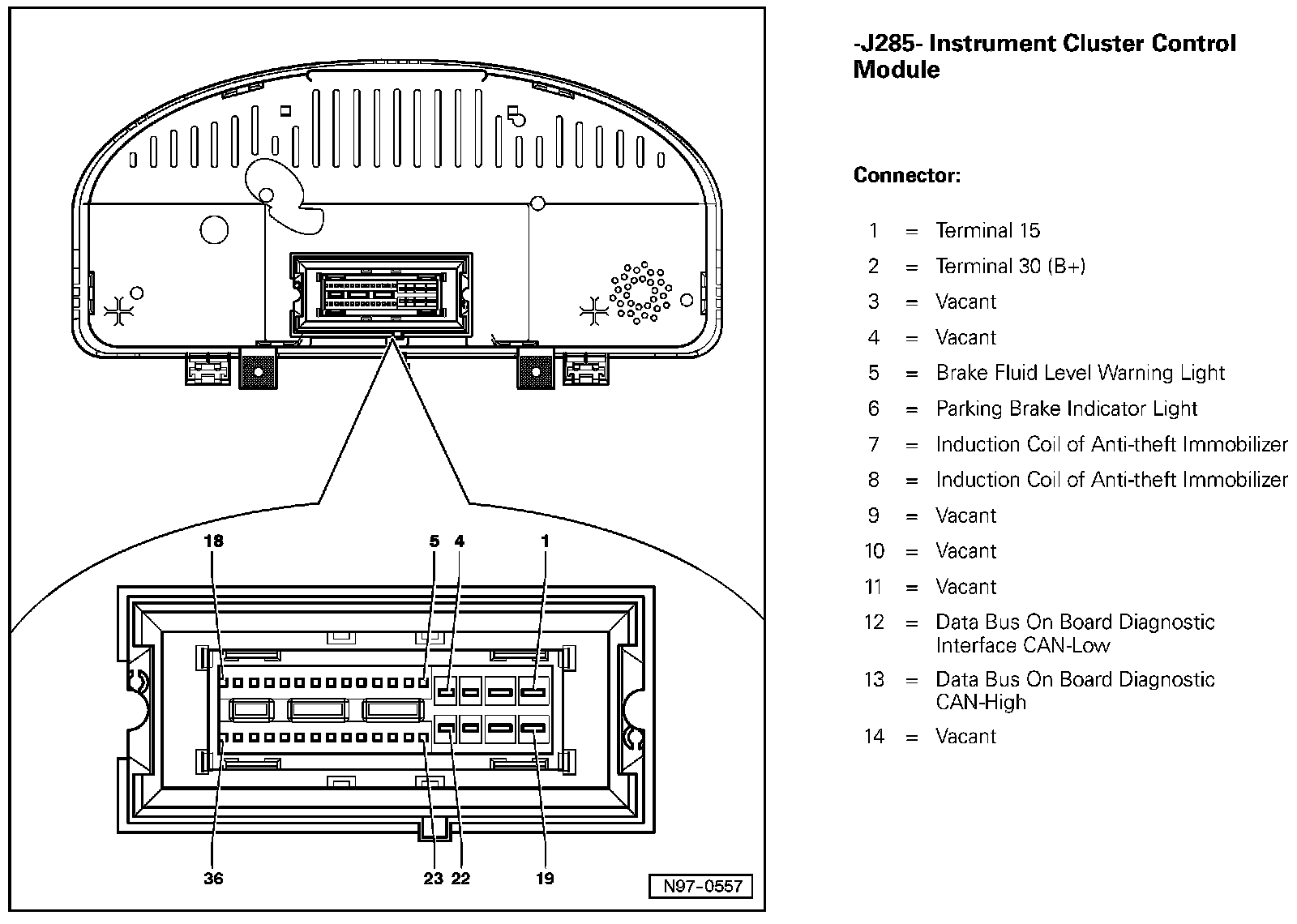

Instrument Cluster Control Module J285 (Part 1):

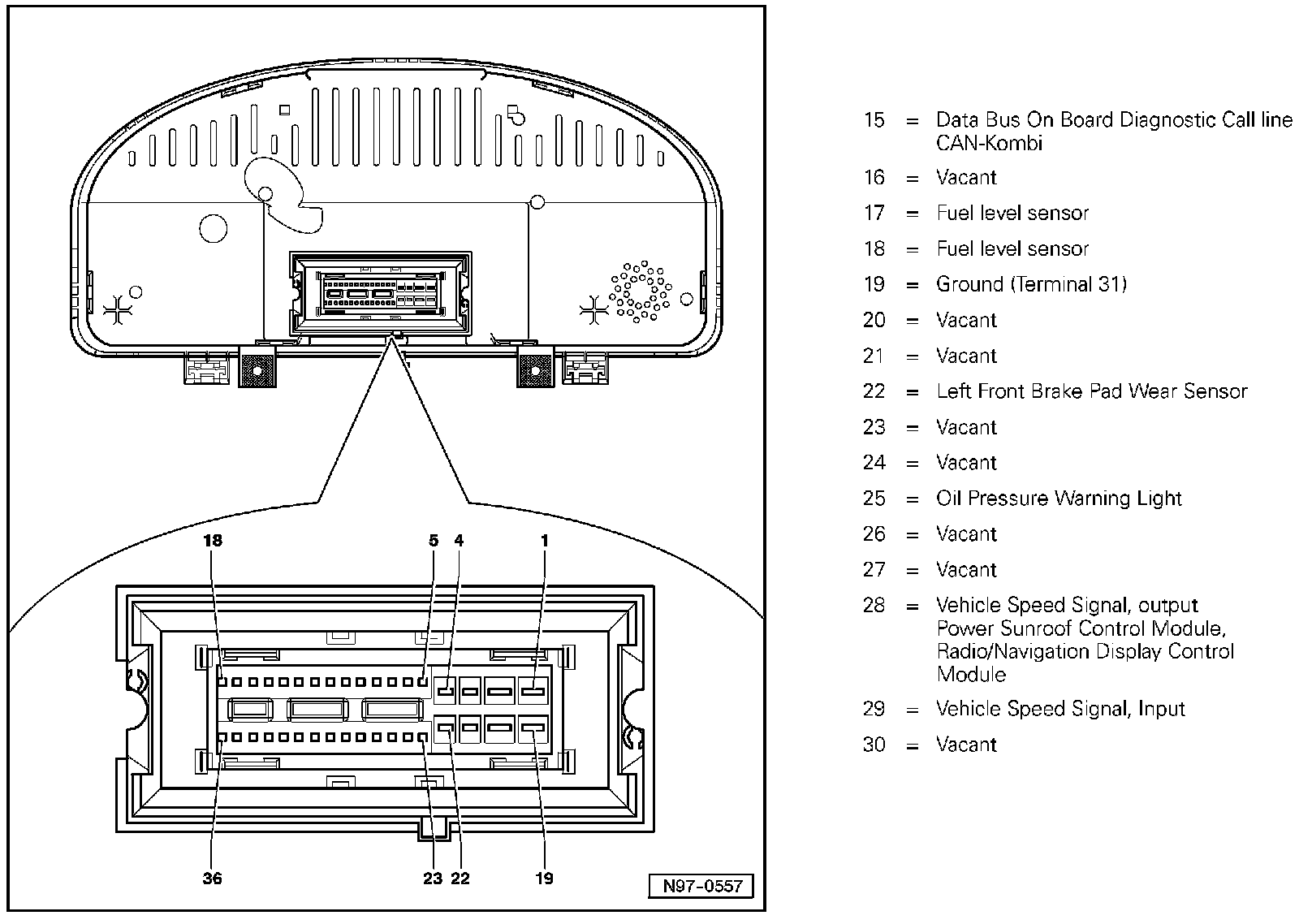

Instrument Cluster Control Module J285 (Part 2):

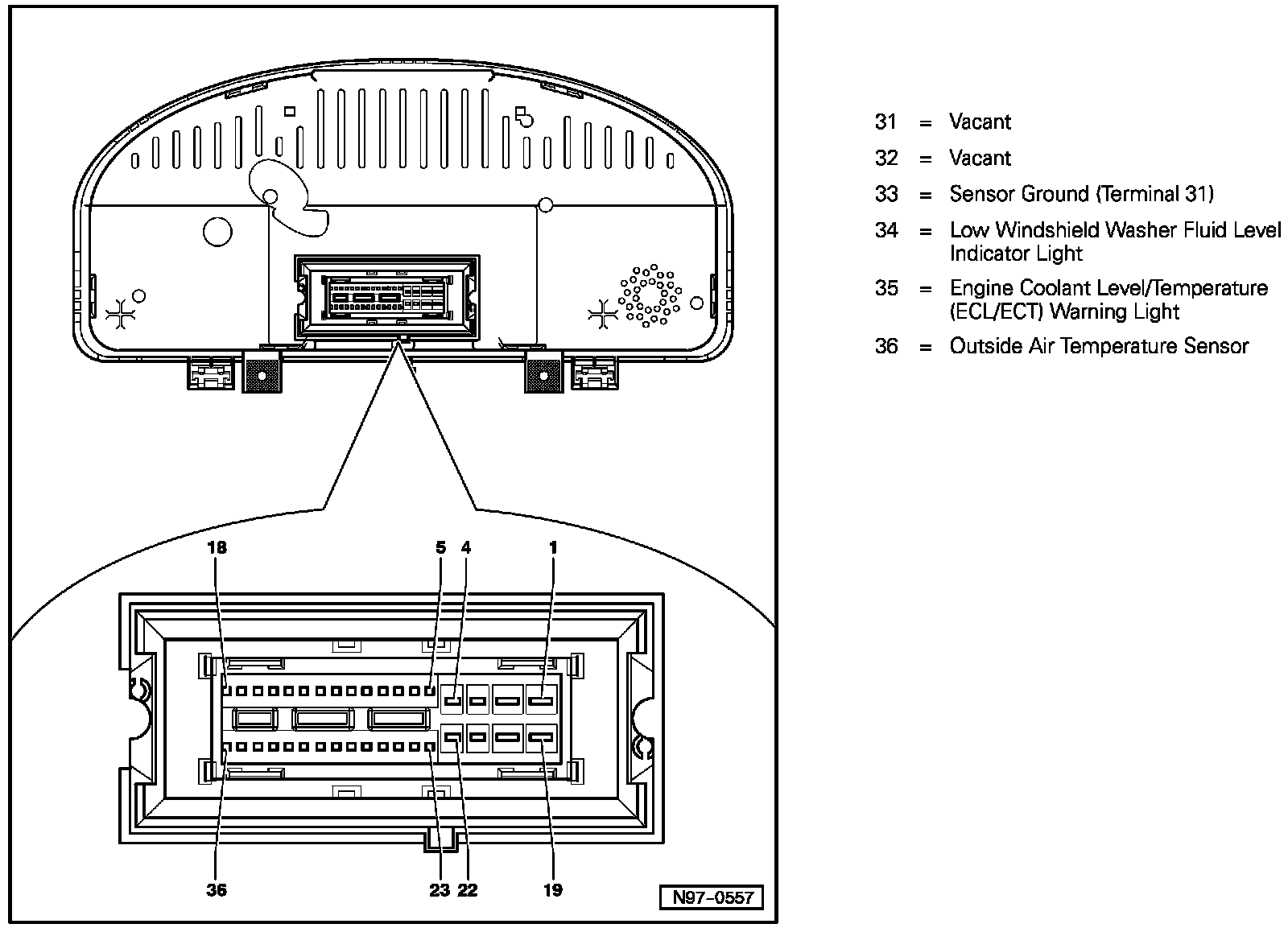

Instrument Cluster Control Module J285 (Part 3):
