Access/Start Authorization Control Module (J518)

Access/Start Authorization Control Module (J518)

The "access/start authorization system" must be coded after the access/start authorization control module has been replaced. Refer to => [ Access/Start Authorization Control Module, Coding ] Programming and Relearning.


• Turn off the ignition and all electrical consumers.

• Remove the key.

Removal

- Remove the driver side footwell vent.

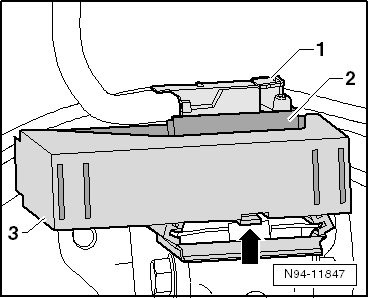

- Open the retainers - arrow - and remove the access/start authorization control module - 2 - together with the mount - 3 - from the brake pedal bracket. Pay attention to the wires still connected.

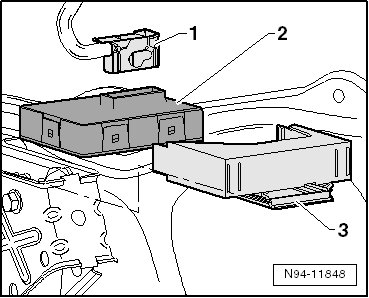

- Disconnect the connector - 1 - and remove the access/start authorization control module - 2 - from its mount - 3 -.

Installation

Installation is performed in the reverse order of removal. Note the following:






- Install the access/start authorization control module - 2 - in its mount - 3 -.

- Slide the mount - 3 -, together with the access/start authorization control module, onto the guides on the brake pedal until it latches secure.

- Connect the connector - 1 -.

The access/start authorization system must be coded after the access/start authorization control module has been replaced. Refer to => [ Access/Start Authorization Control Module, Coding ] Programming and Relearning.
