Left Rear Door Control Module Connector End Views (J388, T18b)

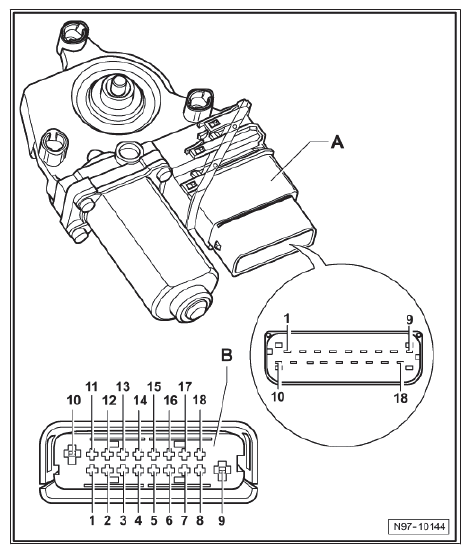

Fig 1: Left Rear Door Control Module Connector End Views (J388, T18b)
G10375862
A Left Rear Door Control Module -J388- Connector
B 18-Pin Connector -T18b- in wiring harness


Fig 1: Left Rear Door Control Module Connector End Views (J388, T18b)
G10375889
A Left Rear Door Control Module -J388- Connector
B 18-Pin Connector, in wiring harness (T18b)
