Driver Door Control Module Connector End Views (J386, T32a, T16a, T20a)

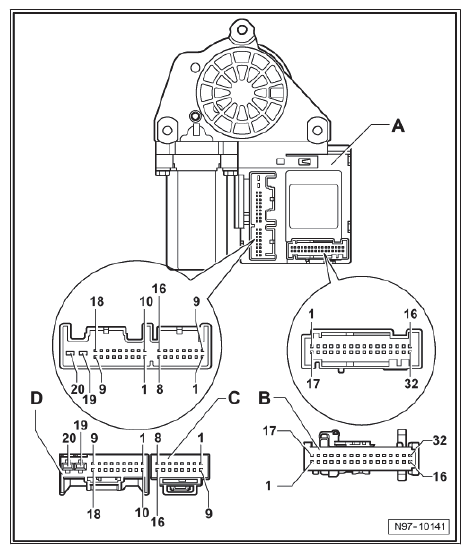

Fig 1: Driver Door Control Module Connector End Views (J386, T32a, T16a, T20a)
A
Driver Door Control Module -J386- Connector
B
32-Pin Connector -T32a- in wiring harness
C
16-Pin Connector -T16a- in wiring harness
D
20-Pin Connector -T20a- in wiring harness
