Airbag Control Module Connector End Views (J234, T75)

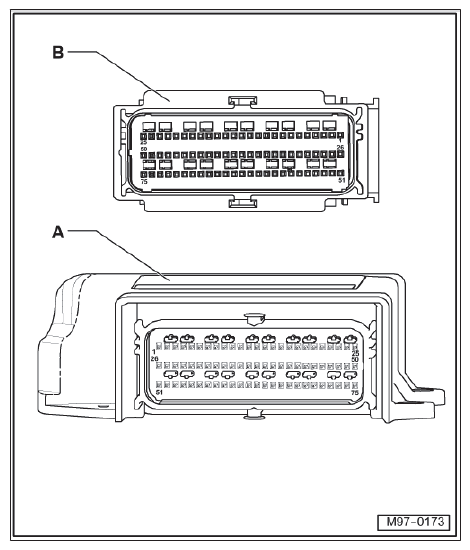

Fig 1: Airbag Control Module Connector End Views (J234, T75)
G10375854
A Airbag Control Module -J234- Connector
B 75-Pin Connector, -T75-, in wiring harness


Fig 1: Airbag Control Module Connector End Views (J234, T75)
G10375886
A Airbag Control Module -J234- Connector:
B 75-Pin Connector, in wiring harness (T75)
