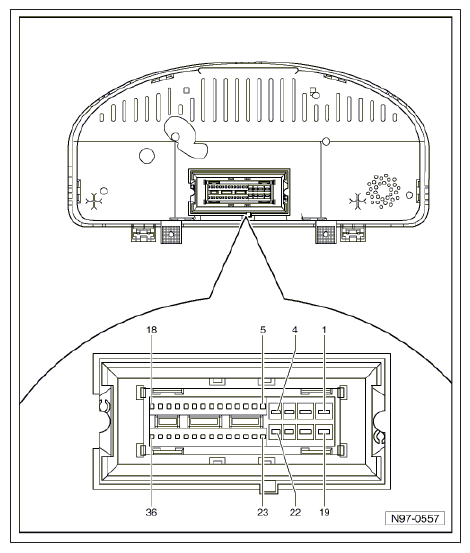

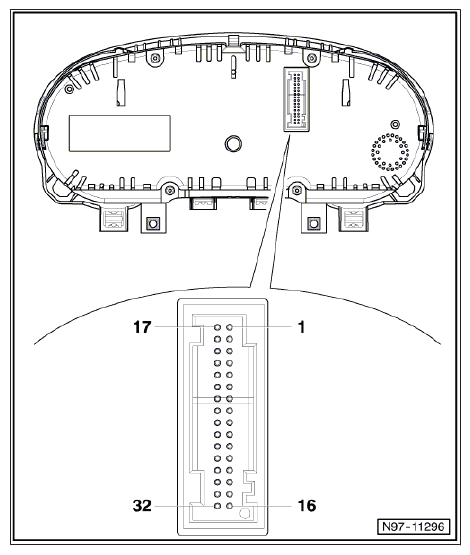

| 1 |
Terminal 15 |
| 2 |
Terminal 30 |
| 3 |
Vacant |
| 4 |
Rear Fog Lamp Indicator Lamp |
| 5 |
Brake Fluid Level Warning Lamp |
| 6 |
Parking Brake Indicator Lamp |
| 7 |
Anti-Theft Immobilizer Reading Coil |
| 8 |
Anti-Theft Immobilizer Reading Coil 2 |
| 9 |
Vacant |
| 10 |
Vacant |
| 11 |
Vacant |
| 12 |
Data Bus On Board Diagnostic CAN-Kombi, Low |
| 13 |
Data Bus On Board Diagnostic Interface CAN-High |
| 14 |
Shielding CAN-High |
| 15 |
Data Bus On Board Diagnostic CAN-High |
| 16 |
Fuel Level Sensor (4 Motion) |
| 17 |
Fuel Level Sensor (full) |
| 18 |
Fuel Level Sensor (empty) |
| 19 |
Ground (Terminal 31) |
| 20 |
Fuel Level Sensor |
| 21 |
Vacant |
| 22 |
Left Front Brake Pad Wear Sensor |
| 23 |
Vacant |
| 24 |
Fuel Filler Lid Lock Warning Lamp |
| 25 |
Oil Pressure Warning Lamp |
| 26 |
Oil Level Thermal Sensor |
| 27 |
Vacant |
| 28 |
Vehicle Speed Signal Shut-Off, Ausgang Power Sunroof Control Module, Radio/Navigation Display Unit Control Module |
| 29 |
Vehicle Speed Signal Shut-Off, Eingang |
| 30 |
Vacant |
| 31 |
Vacant |
| 32 |
Vacant |
| 33 |
Sensor Ground (terminal 31) |
| 34 |
Low Windshield Washer Fluid Level Indicator Lamp |
| 35 |
Engine Coolant Level/Temperature (ECL/ECT) Warning Lamp |
| 36 |
Outside Air Temperature Sensor |
