Windshield washer system, servicing: Notes
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

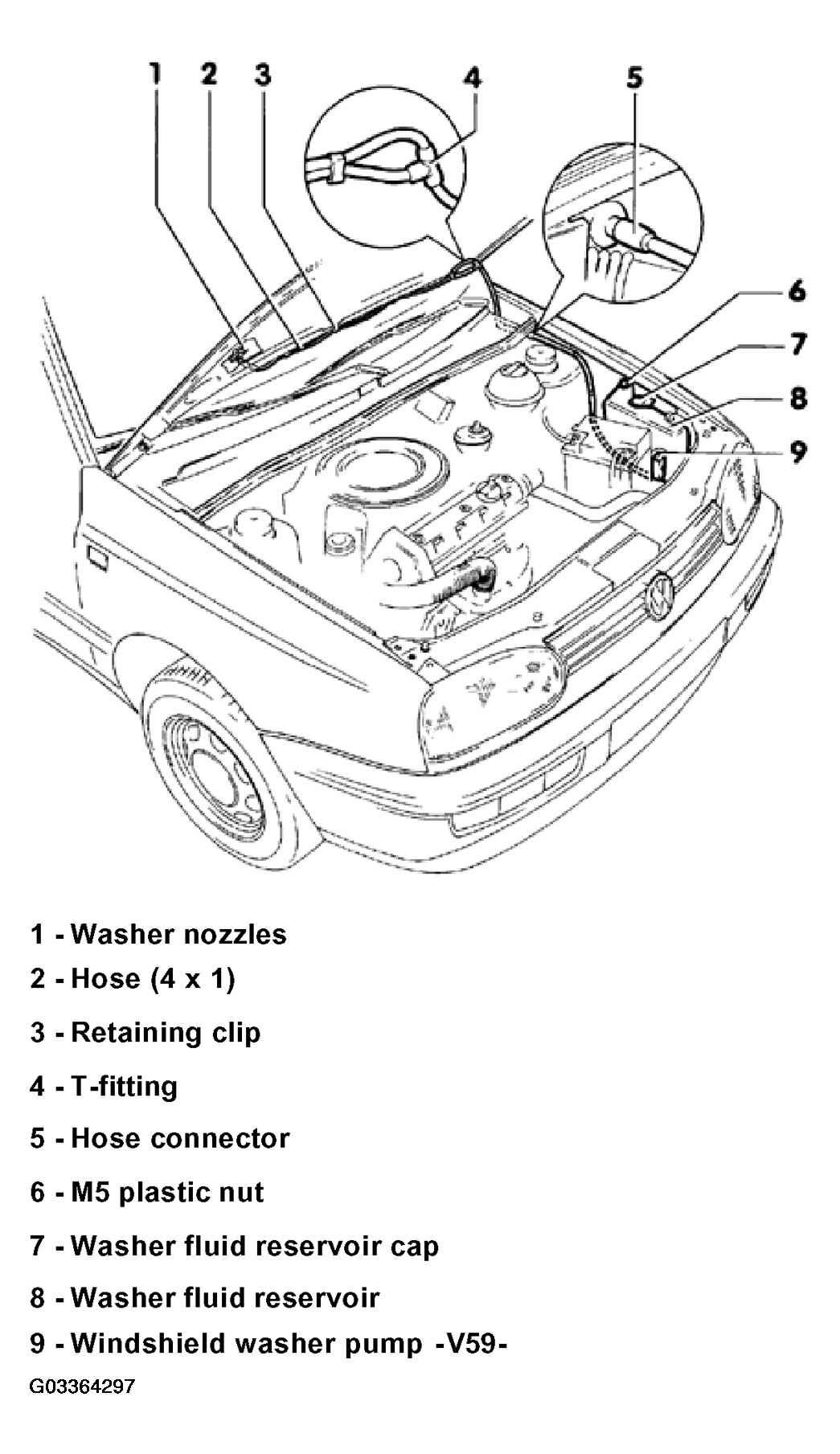

The following list refers to items in Fig 1.
- Washer nozzles
- To 08.96, adjusting, refer to Washer nozzles (up to 08.96), adjusting
- From 08.96, refer to Washer nozzles (from 08.96)
- Cabrio from 10.98, removing and checking, refer to Washer nozzles (Cabrio from 10.98), removing
- Hose (4 x 1)
- Retaining clip
- T-fitting
- Hose connector
- M5 plastic nut
- Washer fluid reservoir cap
- Washer fluid reservoir
- Capacity: 4.0 liters (4.2 qt)
- Windshield washer pump -V59-
- Hose connections, refer to Windshield washer pump -V59- hose connections
