Windshield washer system, servicing: Checking

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Nozzles are preset but small height adjustments can be made.

Fig 1: Pressing Jet Forward Against Retainer Spring

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Using screwdriver, turn eccentric on nozzle in direction of arrow to move spray field on windshield upward.

The spray jets must not be cleaned opposite to direction of spray, e.g. blown through from front.

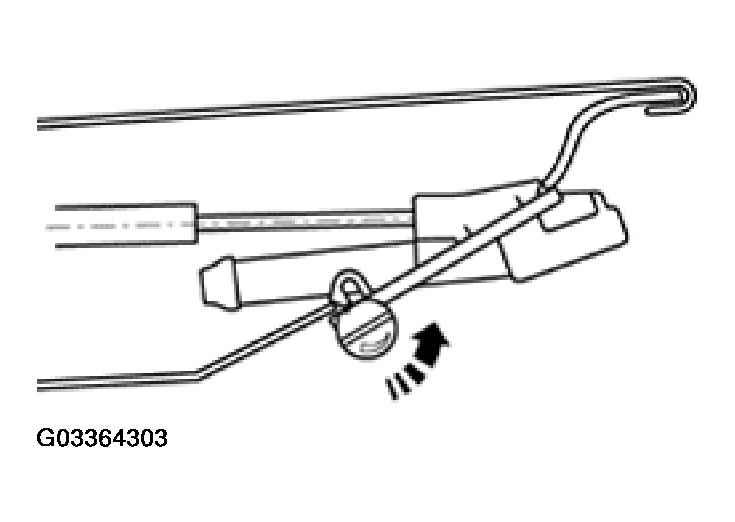

Fig 2: Turning Eccentric On Nozzle Using Screwdriver

Courtesy of VOLKSWAGEN OF AMERICA, INC.
