Door trim, removing: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1 .

- Cover plate
- Pull off door frame (clipped in)
- Insulating plate
- Lock knob
- Remove from lock rod
- Escutcheon
- Clip
- Two-piece
- Trim
- Screw, countersunk
- Door pocket
- Removal is only possible after removing trim panel
- Removing door pocket with speaker mount. See DOOR POCKET WITH SPEAKER MOUNT, REMOVING .
- Window crank
- Removing window crank. See WINDOW CRANK, REMOVING .
- Installing window crank. See WINDOW CRANK, INSTALLING .
- Control knob
- Pushed on
- Door handle trim
- Clipped into door/door pull
- Screw (counter sunk)
- Door/door pull
- Cover
- Clipped into door/door pull

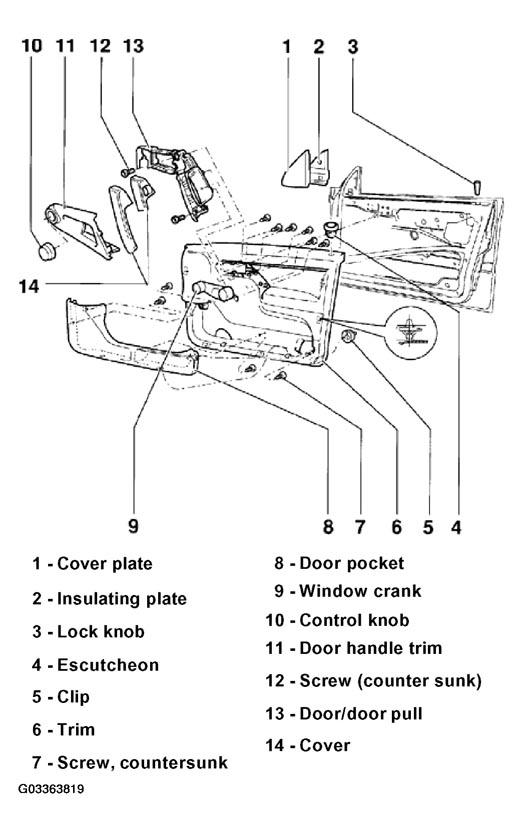

Fig 1: Exploded View Of Door Trim Components

Courtesy of VOLKSWAGEN OF AMERICA, INC.
