Door handle, servicing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

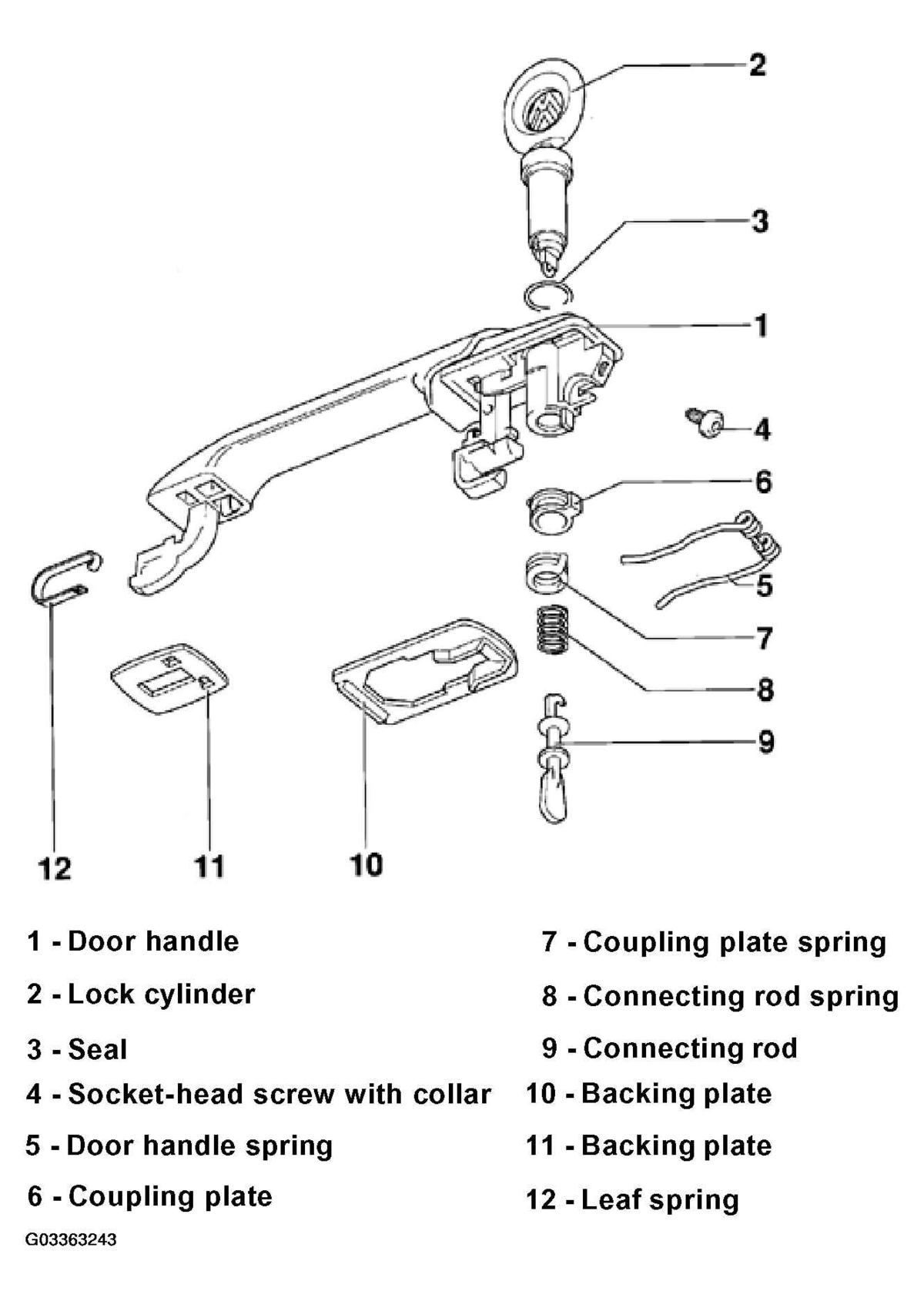

The following list refers to Fig 1
.
- - Door handle
- Removing and installing. See DOOR HANDLE, REMOVING AND INSTALLING .
- - Lock cylinder
- Only press out carefully with key inserted
- Prior to installation, lubricate with G 000 400
- Common key locking (matching locks) can be maintained by repositioning or attaching locking plates. See LOCK CYLINDERS AND KEYS, MATCHING .
- - Seal
- - Socket-head screw with collar
- 8 N.m (71 in. lb)
- - Door handle spring
- - Coupling plate
- - Coupling plate spring
- - Connecting rod spring
- - Connecting rod
- Attached in lock cylinder housing
- - Backing plate
- - Backing plate
- - Leaf spring
