Front Wheel Camber, Adjusting

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install tool and tension slightly.
Loosen bolts connecting suspension strut to wheel bearing housing.
Set camber to specification by turning tool spindle.

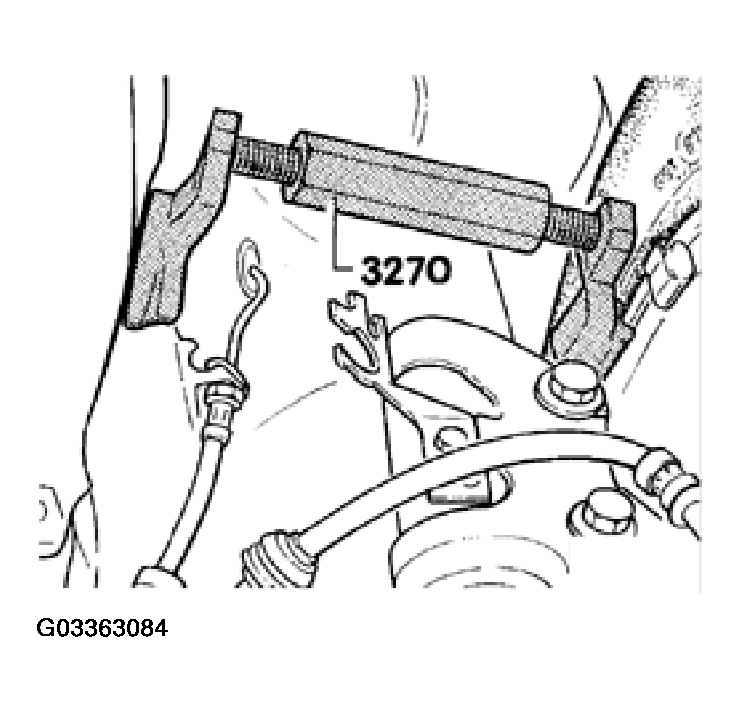

Fig 1: Adjusting Front Wheel Camber Using Tool 3270
Courtesy of VOLKSWAGEN OF AMERICA, INC.
Tighten suspension strut/wheel bearing housing bolts.
Check camber adjustment and repeat procedure if necessary.
