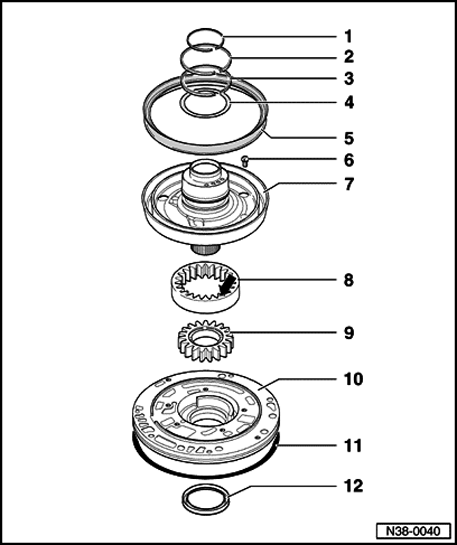

ATF pump, disassembling and assembling: Notes

Replacement ATF pump parts and the ATF pump are allocated according to the transmission code.

1 - Piston ring

• Check that it is correctly located. See Checking that the piston rings are correctly located
• Installing. See Installing and hooking ends of piston ring together

2 - Piston ring

• Check that it is correctly located. See Checking that the piston rings are correctly located
• Installing. See Installing and hooking ends of piston ring together

3 - Piston ring

• Check that it is correctly located. See Checking that the piston rings are correctly located
• Installing. See Installing and hooking ends of piston ring together

4 - Thrust washer

5 - Piston

• Sealing lips are vulcanized to piston
• Moisten sealing lips with ATF before inserting
• Turn piston slightly when installing

6 - Bolt

• 10 Nm then turn 45 ° further

7 - Stator support

8 - Outer gear

• Manufacturer's marking (arrow) faces stator support
• If outer gear is incorrectly installed, ATF pump may not operate freely in installed position

9 - Inner gear

• Larger groove faces stator support

10 - Housing for ATF pump

11 - O-ring

• Always replace

12 - Torque converter oil seal

• Removing and installing. Refer to Torque converter oil seal, removing and installing
