Planetary gearbox, disassembling and assembling: Notes

Special tools and equipment

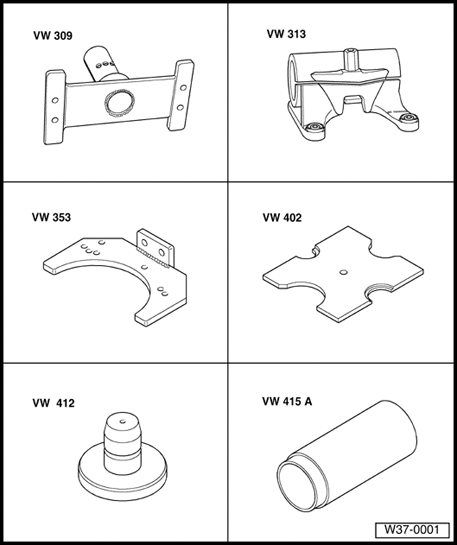

Fig 1: Identifying Special Tools - Planetary Gearbox, Disassembling And Assembling (1 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• VW 309 Holding plate
• VW 313 Support clamp
• VW 353 Transmission support
• VW 402 Thrust plate

• VW 412 Press tool
• VW 415 A Tube

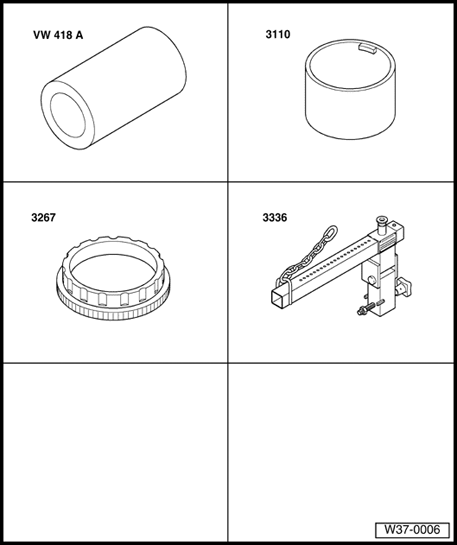

Fig 2: Identifying Special Tools - Planetary Gearbox, Disassembling And Assembling (2 Of 2)

Courtesy of VOLKSWAGEN UNITED STATES, INC.

• VW 418 A Tube
• 3110 Tube
• 3267 Assembly ring
• 3336 Transmission lifting beam

• V.A.G 1331 Torque wrench or equivalent
