Planetary gearbox, disassembling and assembling -Overview-

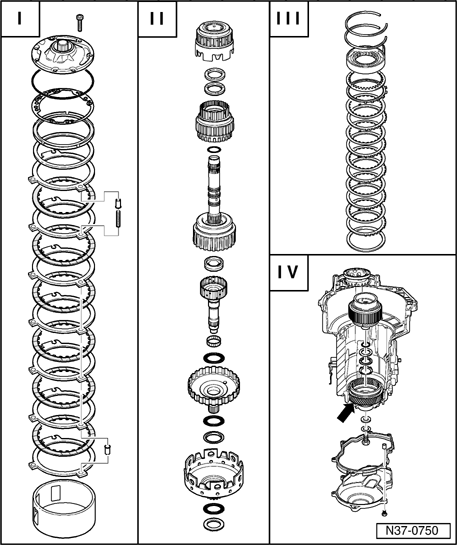

Fig 1: View Of Planetary Gearbox Components

GW00002162

Courtesy of VOLKSWAGEN UNITED STATES, INC.

NOTE:

Disassembling planetary gearbox. Refer to Planetary gearbox, disassembling and assembling ,
Assembling. Refer to Assembling planetary gearbox .

I - Removing and installing ATF pump to support tube. Refer to I - ATF pump to supporting tube, removing and installing

II - Removing and installing reverse clutch -K2- to large sun gear. Refer to II - Reverse gear clutch -K2- to large sun gear, removing and installing

III - Removing and installing freewheel and reverse gear brake -B1-. Refer to III - Freewheel and reverse gear brake -B1-, removing and installing

IV - Removing and installing planet carrier. Refer to IV - Planet carrier and transmission housing with input gear and cover

NOTE:

It is not necessary to remove the input gear (arrow).
Removing and installing input gear. Refer to Input gear, removing and installing .
