Comfort System Central Control Module -J393-, Updating Software For Roof And TPMS Operation (GROUP 57, NO. 11-02)

WARNING: This page is about the Eos 2.0T, Automatic DCT, which is a different variant/trim than selected.

Publication date: 2011-03-24
Reference number: GROUP 57, NO. 11-02
Supersedes refnos: 2013207, GROUP 01, NO. 06-19, GROUP 01, NO. 06-20

COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, UPDATING SOFTWARE FOR ROOF AND TPMS OPERATION

TECHNICAL SERVICE BULLETIN

Reference Number(s): GROUP 57, NO. 11-02 (2013207), Date of Issue: March 24, 2011

VOLKSWAGEN:	Eos 2007
GROUP:	57 - Doors - Front

Superceded Bulletin(s): GROUP 01, NO. 06-20, Date of Issue: October 25, 2006

APPLICABLE MODELS AND YEARS

Model(s)	Year	Eng. Code	Trans. Code	VIN Range From	VIN Range To
Eos	2007	All	All	All	1F_V020223

CONDITION

57 11 02 March 24, 2011 2013207 Supersedes T.B. V010620 dated Oct. 25, 2006 due to SVM conversion.

Comfort System Central Control Module -J393-, Updating Software For Roof And TPMS Operation

Inconsistent roof opening operation and possible "open rear locks" message in MFI.
Tire Pressure Monitoring System (TPMS) is too sensitive and causes TPMS indicator to illuminate in Instrument Cluster.

Tip: The Premium 7 radio software update uses the same SVM code. If the vehicle qualifies, the software update for both control modules will be performed in sequence. Please reference instance 2019894 for more details.

TECHNICAL BACKGROUND

Software concern.

PRODUCTION SOLUTION

Software introduced as of VIN: 1F_7V020224.

SERVICE

Tip: Ensure all tire pressures are within recommended specifications.

VERIFY COMFORT CONVENIENCE MODULE SOFTWARE

Connect Midtronics InCharge (INC-940) Tester/Charger to vehicle's battery
Connect VAS tester to vehicle
Switch ignition ON
Select Vehicle Self Diagnosis
Select On Board Diagnostics (OBD)
Select 46 - Comfort Convenience Module

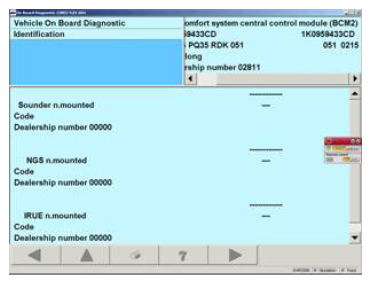

Write down the software level

Tip: If software level is already 0218 or higher , then this TB does not apply. Additional diagnosis will need to be performed.

UPDATE PROGRAMMING PROCEDURE

Tip: To Update-Programming using SVM, review and follow instructions in Technical Bulletin Instance 2014603 "Software Version Management".

The SVM Process must be completed in its entirety so the database receives the update confirmation response. A warranty claim may not be reimbursed if there is no confirmation response to support the claim.

NOTE: Prior to launching VAS-PC application and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Circular # VSE-08-18. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.

When using a VAS 6150, 5051B or 5052A tester in conjunction with a VAS 5054A wireless transmitter head for a flash procedure, please connect a USB cable between the transmitter head and the tester. Failure to do so may lead to errors during the flash procedure.

Update the Comfort Convenience Control Module using the SVM code 34A6 .

WARRANTY

WARRANTY INFORMATION

To determine if this procedure is covered under Warranty, always refer to the Warranty Policies and Procedures Manual ⁽¹⁾

Model(s)

Year(s)

Eng. Code(s)

Trans. Code(s)

VIN Range From

VIN Range To

Eos

2007

All

1F_7V000001

1F_7V020223

Claim Type:

Use applicable Claim Type ⁽¹⁾

SAGA Coding

Service Number:

Damage Code

HST

Damage Location (Depends on Service No.)

Parts Manufacturer (removed part)

5789

0039

Use applicable when indicated in ElsaWeb (L/R)

WWO ⁽²⁾

Labor Operation ⁽³⁾: Update programming

57892599 = 20 TU

Labor Operation ⁽³⁾: Charge Battery

27068950 = 10 TU

Diagnostic Time ⁽⁴⁾

GFF Time expenditure

01500000 = 00 TU max.

Road Test

01210002 01210004

Technical Diagnosis

0132xxxx = 00 TU max.

Claim Comment: Input "As per Technical Bulletin 2013207" in comment section of Warranty Claim.

⁽¹⁾	Vehicle may be outside any Warranty in which case this Technical Bulletin is informational only

⁽²⁾	Code per warranty vendor code policy.

⁽³⁾	Labor Time Units (TUs) are subject to change with Elsa updates.

⁽⁴⁾	Documentation required per Warranty Policy & Procedures Manual.

REQUIRED PARTS AND TOOLS

No special parts required.

TOOL INFORMATION

Tool Description	Tool No:
Midtronics Battery Tester/Charger	InCharge 940 (INC 940)
VAS Diagnostic Tool VAS	5051B, 5052A, 6150(A) (Base CD V18.00, Patch CD V18.01.01, Brand CD V18.09.01 or higher)

ADDITIONAL INFORMATION

All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
