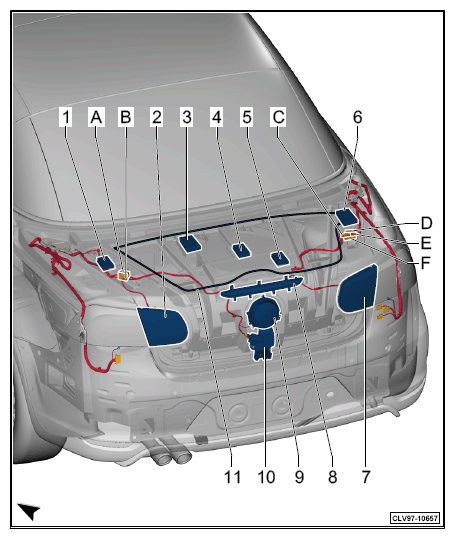

Trunk Lid

  1. 1  - Compass magnetic field sensor -G197-
  2. 2  - Left tail lamp 2 -MX5-
  3. 3  - Roof antenna -RX5-
  4. 3  - Telephone antenna -R65-
  5. 3  - Antenna amplifier 2 -R111-
  6. 4  - Satellite tuner antenna -R172-
  7. 4  - Digital radio antenna -R183-
  8. 5  - GPS antenna -R50-
  9. 6  - Antenna amplifier -R24-
  10. 7  - Right tail lamp 2 -MX6-
  11. 8  - High-mounted brake lamp bulb -M25-
  12. 9  - Rearview camera -R189-
  13. 10  - Rear lid central locking system motor -V53-
  14. 10  - Rear lid unlock motor -V139-
  15. 10  - Rear lid lock unit -F256-
  16. 11  - Antenna -R11-
  17. 11  - Radio antenna 2 -R93-
  18. A  - 5-pin connector -T5af-
  19. A  - 5-pin connector -T5o-
  20. B  - 5-pin connector -T5ag-
  21. B  - 5-pin connector -T5p-
  22. C  - Single connector -T1d-
  23. D  - Single connector -T1i-
  24. E  - Single connector -T1c-
  25. F  - Single connector -T1f-
  26. F  - Single connector -T1g-
G12750428Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
