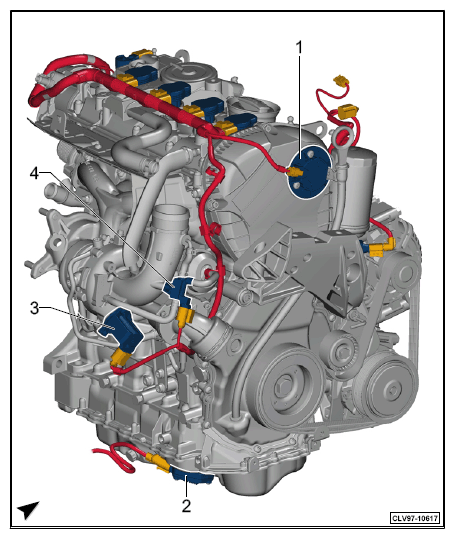

2.0L CCTA And CBFA, Right

  1. Camshaft adjustment valve 1 -N205-
  2. Oil level thermal sensor -G266-
  3. Turbocharger recirculation valve -N249-
  4. Wastegate bypass regulator valve -N75-
G12750420Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
