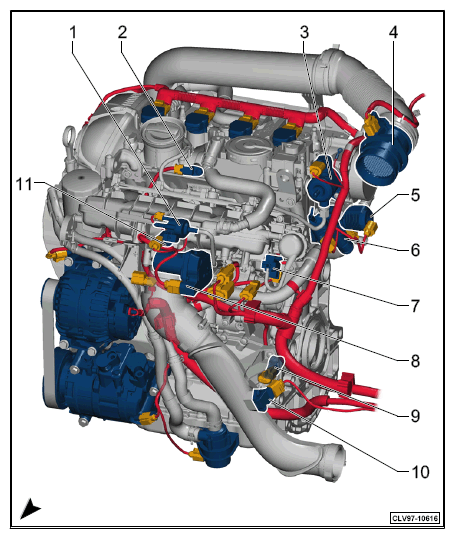

2.0L CCTA And CBFA, Left
- 1 - EVAP canister purge regulator valve 1 -N80-
- 2 - Camshaft position sensor -G40-
- 3 - Fuel pressure regulator valve -N276-
- 4 - Mass airflow sensor -G70-
- 5 - Secondary air injection solenoid valve -N112-
- 6 - Secondary air injection sensor 1 -G609-
- 7 - Intake manifold runner control valve -N316-
- 8 - Throttle valve control module -J338-
- 8 - EPC throttle drive -G186-
- 8 - EPC throttle drive angle sensor 1 -G187-
- 8 - EPC throttle drive angle sensor 2 -G188-
- 9 - Engine speed sensor -G28-
- 10 - Charge air pressure sensor -G31-
- 11 - Manifold absolute pressure sensor -G71-
- 11 - Intake air temperature sensor -G42-
