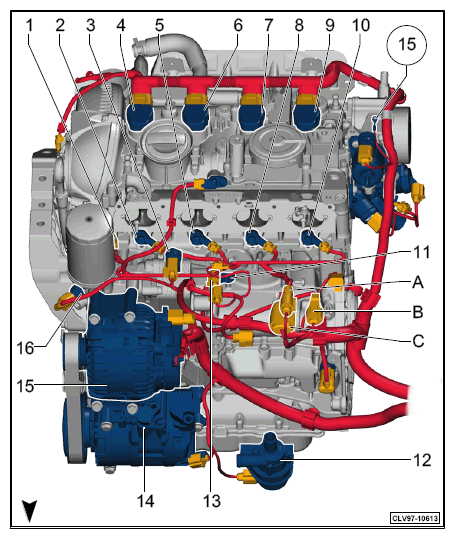

2.0L CCTA And CBFA, Front
- 1 - Intake manifold runner position sensor -G336-
- 2 - Cylinder 1 fuel injector -N30-
- 3 - Fuel pressure sensor -G247-
- 4 - Ignition coil 1 with power output stage -N70-
- 5 - Cylinder 2 fuel injector -N31-
- 6 - Ignition coil 2 with power output stage -N127-
- 7 - Ignition coil 3 with power output stage -N291-
- 8 - Cylinder 3 fuel injector -N32-
- 9 - Ignition coil 4 with power output stage -N292-
- 10 - Cylinder 4 fuel injector -N33-
- 11 - Knock sensor 1 -G61-
- 11
- Knock sensor 2 -G66-
- If equipped, located on side of engine block.
- 12 - After-run coolant pump -V51-
- 13 - Engine coolant temperature sensor -G62-
- 14 - A/C compressor regulator valve -N280-
- 15 - Generator with voltage regulator -CX1-
- 16 - Oil pressure switch -F1-
- A - 6-pin connector -T6bu-
- B - 3-pin connector -T3bh-
- C - 8-pin connector -T8i-
- 15 - Ground connection on cylinder head
