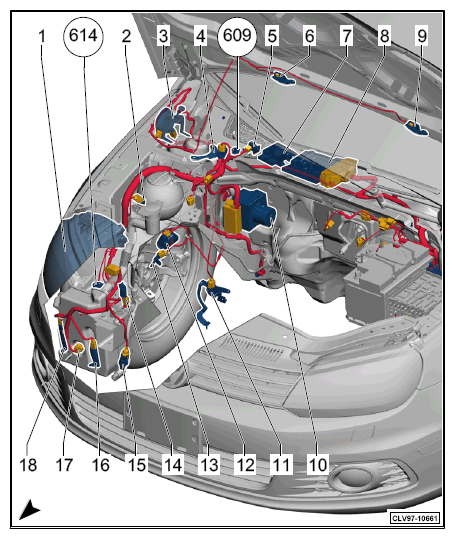

Engine Compartment Right
- 1 - Right front headlamp -MX2-
- 1 - Right headlamp power output stage -J668-
- 2 - Engine coolant level sensor -G32-
- 3 - Alarm horn -H12-
- 4 - Right front body acceleration sensor -G342-
- 5 - Air quality sensor -G238-
- 6 - Right washer nozzle heater -Z21-
- 7 - Structure borne sound control module -J869-
- 8 - Engine control module -J623-
- 9 - Left washer nozzle heater -Z20-
- 10 - ABS control module -J104-
- 11 - Right front level control sensor -G289-
- 12 - Right front damping adjustment valve -N337-
- 13 - Right front ABS wheel speed sensor -G45-
- 14 - Passenger side front airbag crash sensor -G284-
- 15 - High pressure sensor -G65-
- 16 - Windshield washer pump -V5-
- 17 - Windshield washer fluid level sensor -G33-
- 18 - Headlamp washer pump -V11-
- 609 - Ground connection in plenum chamber, right
- 614 - Ground connection 2 in engine compartment, right
