Engine Compartment Left, I

  1. 1  - Brake booster vacuum sensor -G483-
  2. 2  - Brake lamp switch -F-
  3. 3  - Wiper motor control module -J400-
  4. 4  - Left front body acceleration sensor -G341-
  5. 5  - Brake fluid level warning switch -F34-
  6. 6  - Left front headlamp -MX1-
  7. 6  - Left HID headlamp control module -J343-
  8. 6  - Left headlamp power output stage -J667-
  9. 6  - Left daytime running lamp and position lamp control module -J860-
  10. 7  - Driver front airbag crash sensor -G283-
  11. 8  - Engine coolant temperature sensor on radiator outlet -G83-
  12. 9  - Coolant fan control module -J293-
  13. 10  - Engine hood contact switch -F266-
  14. 11  - Coolant fan 2 -V177-
  15. 12  - Left front level control system sensor -G78-
  16. 13  - Power steering control module -J500-
  17. 13  - Steering torque sensor -G269-
  18. 13  - Steering angle sensor -G85-
  19. 13  - Electromechanical power steering motor -V187-
  20. A  - 14-pin connector -T14b-
  21. B  - 4-pin connector -T4t-
  22. C  - 8-pin connector -T8ab-
  23. 1  - Ground strap, battery to body
  24. 607  - Ground connection in plenum chamber, left
  25. 615  - Ground connection on left strut

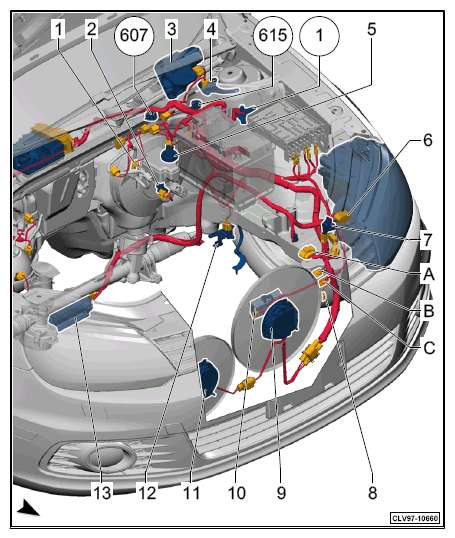

G12750421Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
