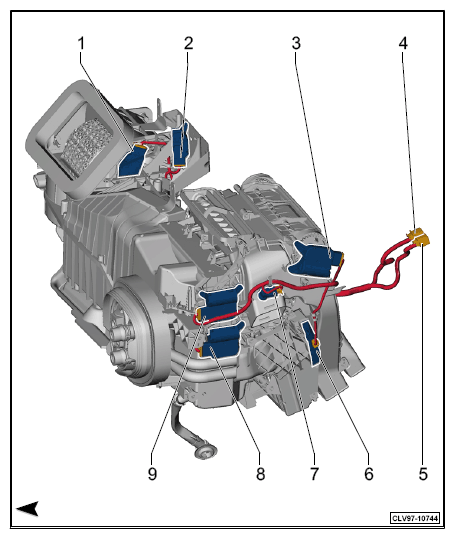

CLIMATRONIC, Part II
- 1 - Fresh air/recirculating air/back pressure door motor position sensor -G644-
- 1 - Fresh air/recirculating air/back pressure door motor -V425-
- 2 - Airflow door motor -V71-
- 2 - Recirculation door motor -V113-
- 2 - Recirculation door motor position sensor -G143-
- 3 - Central air door motor -V70-
- 3 - Central door motor position sensor -G112-
- 4 - 16-pin connector -T16g-
- 5 - 16-pin connector -T16f-
- 6 - Auxiliary heater heating element -Z35-
- 7 - Left footwell vent temperature sensor -G261-
- 8 - Left temperature door motor -V158-
- 8 - Left temperature door potentiometer/actuator -G220-
- 9 - Defroster door motor -V107-
- 9 - Defroster door motor position sensor -G135-
