CLIMATRONIC Control Module, From 08 November 2010

NOTE:

Not all the buttons are used, depending on the vehicle equipment level.

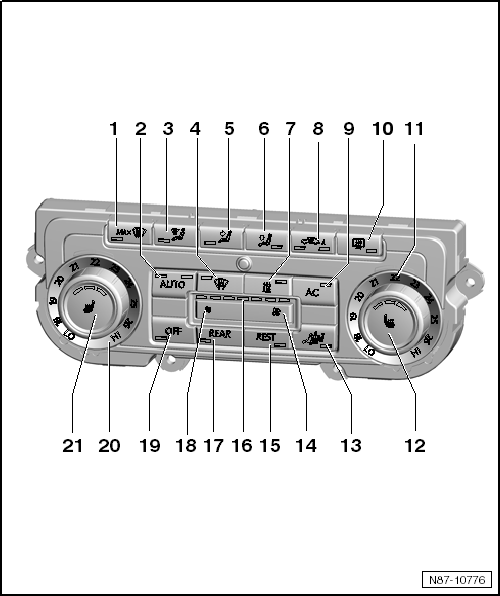

Fig 1: Identifying Climatronic Control Module, From 08 November 2010
GWWN87-10776Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Max Defrost button
    • The control module will be activated in such a way so that the windshield will defrost quickly when the Max Defrost button is pushed.
  2. AUTO Button
    • In automatic mode the Climatronic maintains the selected vehicle temperature automatically. The air temperature, the blower speed and the air distribution are adjusted automatically.
    • LED is on when the setting is active.
    • Pressing the button several times increases the blower speed when using AUTO  . The second LED turns on.
  3. Windshield Air Distribution Button
    • LED is on when the setting is active.
  4. Heated Windshield Button
    • LED is on when the setting is active.
  5. Center Air Distribution Button
    • LED is on when the setting is active.
  6. Lower Air Distribution Button
    • LED is on when the setting is active.
  7. Immediate Heating Button -E537-
    • LED is on when the setting is active.
  8. Air Recirculation Button
    • Press the button for recirculating air function to prevent polluted air from entering interior.
      NOTE:

      Recirculating air is switched on automatically under the following conditions:

      When the windshield washer system is operated.

      When Air quality sensor -G238- is activated.

      When the reverse gear is engaged (this function is only active for 2 minutes after the engine is started).

      Blower speeds on Front A/C display control head -E87-.

      Front A/C display control head -E87- "OFF"

  9. AC Button
    • If the AC  button is deactivated, the A/C compressor is set to almost zero delivery. If the AUTO  button is activated, the heating and ventilation mode continues to be controlled electronically.
  10. Rear Window Defogger Button
    • Rear window defroster remains on for 4 to 20 minutes, depending on exterior temperature.
    • LED is on when the setting is active.
  11. Right Temperature Control Knob
    • The selected temperature will be illuminated.
  12. Button For The Right Seat Heating
    • The seat heating as 3 settings. An LED indicates which setting is selected.
    • If no LED is illuminated, the seat heater is switched off.
  13. Air Conditioning Synchronization Button
    • This button transfers all driver air conditioning settings to the other seats.
  14. Button For Increasing The Blower Speed
  15. REST Button
    • When residual heat function is switched on the residual heat of engine is pumped by a coolant pump to the heater core.
  16. Blower Speed Display
    • The selected speed is illuminated.
    • In automatic operation the actual blower speed is displayed.
  17. REAR Button
    • Press the REAR  button to set the Rear A/C display control head -E265-.
  18. Button For Decrease The Blower Speed
  19. OFF Button
    • Press the OFF  button to turn off the heater and A/C.
  20. Left Temperature Control Knob
    • The selected temperature will be illuminated.
  21. Button For Left Seat Heating
    • The seat heating as 3 settings. An LED indicates which setting is selected.
    • If no LED is illuminated, the seat heater is switched off.
