Front A/C Display Control Head Function

NOTE:

Not all the buttons are used, depending on the vehicle equipment level.

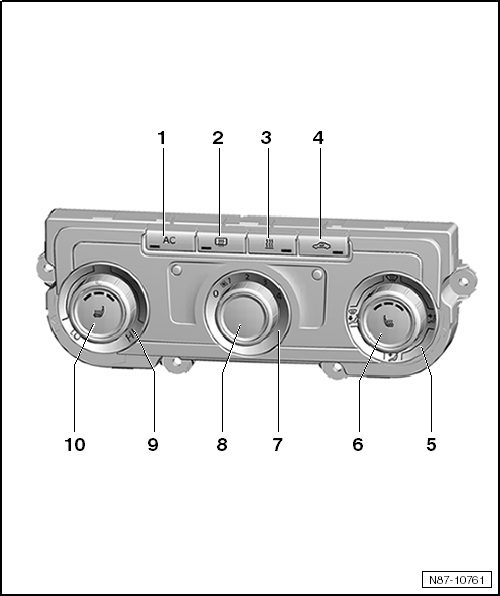

Fig 1: Identifying Front A/C Display Control Head Function
GWWN87-10761Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. AC Button
    • If the AC  button is deactivated, the A/C compressor is set to almost 0 delivery.
  2. Rear Window Defogger Button
    • Rear window defroster remains on for 4 to 20 minutes, depending on exterior temperature.
  3. Immediate Heating Button -E537- or Heated Windshield
    • Depending on the equipment level.
  4. Recirculating Air Mode Button
    • Press the button for recirculating air function to prevent polluted air from entering interior.
  5. Air Distribution Control
  6. Button For The Right Seat Heating
    • The seat heating as 3 settings. An LED indicates which setting is selected.
    • If no LED is illuminated, the seat heater is switched off.
  7. Blower Speed Display
  8. Blower Speed Control
    • To the left: decreases the blower speed.
    • To the right: increases the blower speed.
  9. Temperature Setting Control
    • To the left: lower the temperature.
    • To the right: increases the temperature.
  10. Button For Left Seat Heating
    • The seat heating as 3 settings. An LED indicates which setting is selected.
    • If no LED is illuminated, the seat heater is switched off.
