Display And Control Unit Overview, CLIMATRONIC (From 05/28/2012)

WARNING: This page is about a different car, the 2015 Volkswagen Passat, 2014 Volkswagen Passat, 2013 Volkswagen Passat, and 2012 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

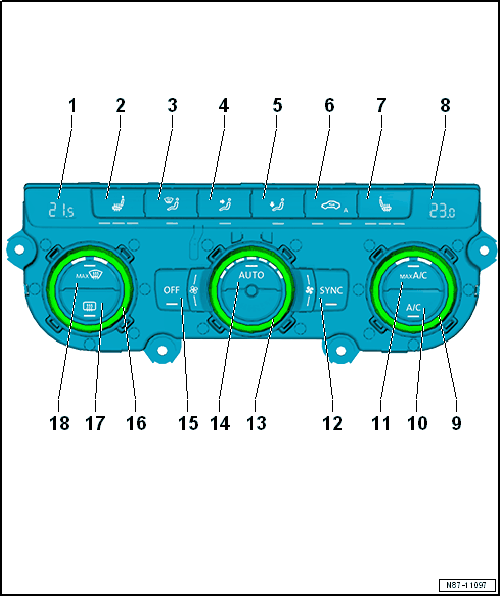

Fig 1: Exploded View Of Display And Control Unit Overview, Climatronic Components
GWWN87-11097Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Left Temperature Display
    • Shows the set temperature for the driver side
  2. Left Seat Heating Button
    • The LED turns on when the system is active
    • The seat heating as three settings. An LED indicates which setting is selected
  3. Windshield Air Distribution Button
    • The LED turns on when the system is active
  4. Center Air Distribution Button
    • Air distribution in the upper body above the center air vents
    • The LED turns on when the system is active
  5. Footwell Air Distribution Button
    • Air distribution into the footwell
    • The LED turns on when the system is active
  6. Air Recirculation Button
    • The LED turns on when the system is active
    • Manual and automatic recirculating air mode
    • Press the button for recirculating air function to prevent polluted air from entering interior

      Recirculating air is switched on automatically under the following conditions:

      • When the windshield washer system is operated
      • when the Air Quality Sensor -G238- is activated
      • When the reverse gear is engaged (this function is only active for 2 minutes after the engine is started)
      • Blower speed on Front A/C Display Control Head -E87-
      • Front A/C Display Control Head -E87- "OFF"
  7. Right Seat Heating Button
    • The LED turns on when the system is active
    • The seat heating as three settings. An LED indicates which setting is selected
  8. Right Temperature Display
    • Shows the temperature set for the front passenger side
  9. Right Temperature Control
    • The selected temperature will be shown in the display
  10. A/C  Button
    • The LED turns on when the system is active
    • The A/C compressor is set to almost 0 delivery when the AC  button is off. If the AUTO  button is activated, the heating and ventilation mode continues to be controlled electronically
  11. MAX A/C  Button
    • The LED turns on when the system is active
    • Run A/C system with MAX A/C
  12. Sync  Button
    • The LED turns on when the system is active
    • Current driver side temperature control supersedes that of the front passenger side
  13. Blower Control
    • By turning the knob, the blower speed can be individually adjusted
    • If the blower speed is manually adjusted, the function AUTO  is automatically deactivated
  14. AUTO  Button
    • The LED turns on when the system is active
    • In automatic mode the Climatronic maintains the selected vehicle temperature automatically. The air temperature, the blower speed and the air distribution are adjusted automatically
  15. OFF  Button
    • Press the OFF  button to turn off the heater and A/C
  16. Left Temperature Control
    • The selected temperature will be shown in the display
  17. Rear Window Defogger Button
    • The LED turns on when the system is active
    • It only works when the engine is running and turns off on its own after 10 minutes
  18. MAX Defrost Button
    • Air sucked in from the outside is directed to the windshield causing the recirculating air mode to shut off automatically
    • In order to remove fog from front windshield quickly, the air temperature must be above 1.5°C (35°F) and the blower must set to the highest speed
