Radio/RNS -RX1-, REMOVAL AND INSTALLATION: Installing
WARNING: This page is about a different car, the 2015 Volkswagen Passat, 2014 Volkswagen Passat, 2013 Volkswagen Passat, and 2012 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.
-- Connect the connectors to the Radio/RNS -RX1-.
CAUTION:
Never push directly on the display or the buttons when inserting the Radio/RNS -RX1-.
-- Insert the Radio/RNS -RX1- straight into the instrument panel.

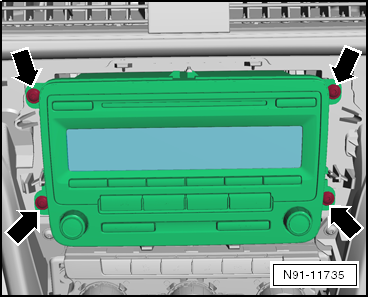

-- Secure the Radio/RNS -RX1- with the four bolts -arrows-.
-- Connect the connector to the Front Passenger Airbag -Disabled- Indicator Lamp -K145-.
-- Install the instrument panel trim.
-- Deactivate the transportation safeguard, if necessary:
- Refer to PREMIUM 8 RADIO SYSTEM
- Refer to RCD 510 RADIO SYSTEM
