External Multimedia Device Interface -R215-, REMOVAL AND INSTALLATION: Removing

WARNING: This page is about a different car, the 2015 Volkswagen Passat, 2014 Volkswagen Passat, 2013 Volkswagen Passat, and 2012 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the connected adapter cables from the External Multimedia Device Interface -R215-.

-- Remove the rear trim from the center console, refer to Removal and Installation or remove the rear vents, refer to [For engine(s) CDVB, CPRA, CBTA, CPKA, CKRA, CBUA] Description and Operation .

-- Remove the screw -1-.

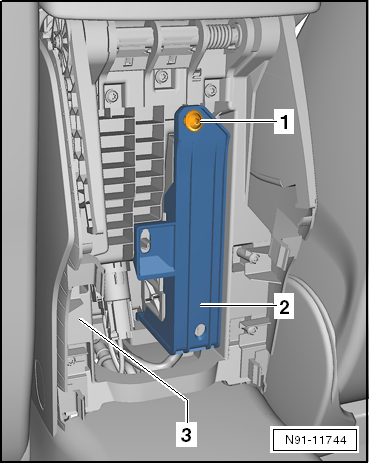

Fig 1: Identifying Screw

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the External Multimedia Device Interface -R215- -2- from the center -3- to the rear.

-- Unlock the connector -arrow- and disconnect the connector -A- from the External Multimedia Device Interface -R215-.

Fig 2: Identifying Multimedia System Control Module Connector

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
