External Audio Source Connection -R199-, REMOVAL AND INSTALLATION: Notes

WARNING: This page is about a different car, the 2015 Volkswagen Passat, 2014 Volkswagen Passat, 2013 Volkswagen Passat, and 2012 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Trim Removal Wedge 3409

NOTE:

Familiarity with the function and operation is needed if there are customer concerns.

For additional information, refer to the Owner's Manual and appropriate Wiring Diagram.

Use the Vehicle Diagnostic Tester for servicing or fault finding.

Check all vehicle equipment (clock, convenience systems, etc.) after connecting the battery, refer to [For transmission(s) 0A4, 02E, 09G, 02Q] [For engine(s) CVCA, CDVB, CPRA, CBTA, CPKA, CKRA, CBUA] Removal and Installation and/or the Owner's Manual.

The External Audio Source Connection -R199- works with the Radio/RNS -RX1- that has an "AUX".

Audio signals (generally the headphone output signals) from MP3 players and CD and cassette players can be played in the Radio/RNS -RX1- through the External Audio Source Connection -R199- with the appropriate cord. They can then be played through the vehicle speakers.

The External Audio Source Connection -R199- has a 3.5 mm stereo jack.

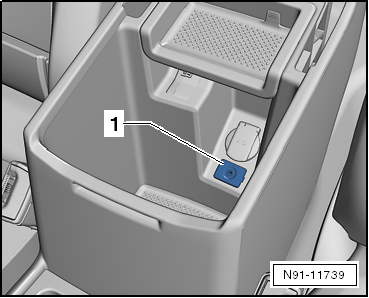

Fig 1: Component Location Overview - External Audio Source Connection -R199-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The External Audio Source Connection -R199- -1- is located in the storage compartment under the front center armrest.

NOTE:

The External Audio Source Connection -R199- may be installed on vehicles without an External Multimedia Device Interface -R215- next to the Power Socket 12 V -UX3-.

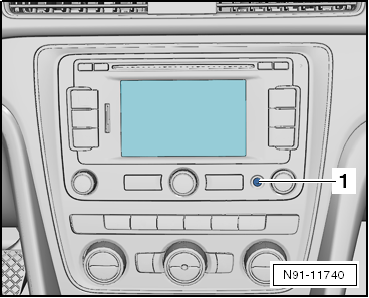

Fig 2: Installed Location Overview for the External Audio Source Connection -R199- On RNS 315

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The External Audio Source Connection -R199- -1- is integrated in the "RNS 315". It is located in the right side of the front trim at the bottom.
