External Audio Source Connection -R199-, REMOVAL AND INSTALLATION: Installing

WARNING: This page is about a different car, the 2015 Volkswagen Passat, 2014 Volkswagen Passat, 2013 Volkswagen Passat, and 2012 Volkswagen Passat. However, it is still accessible from the selected car via links, so may be relevant.

Install in reverse order of removal.

Connector for External Audio Source Connection

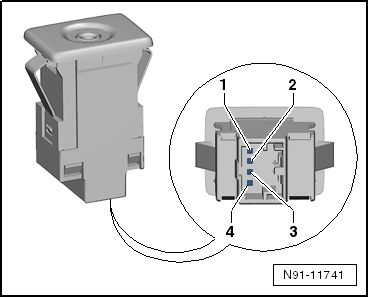

Fig 1: Multi-Pin Connector, 4-Pin

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Right Audio Signal
Audio Ground
Audio Signal, Left
Audio Ground
