Rear Window Assembly Overview

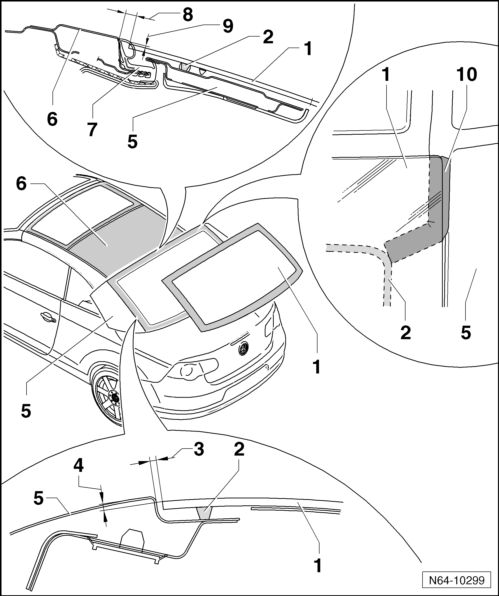

Fig 1: Identifying Assembly Overview: Rear Window

Courtesy of VOLKSWAGEN UNITED STATES, INC.

Rear window
- Removing, refer to UNDAMAGED REAR WINDOW, REMOVING
- Installing, Refer to REAR WINDOW, INSTALLING
PUR adhesive sealant
- Bead diameter: width = 6.5 mm, height = 10 mm (including residual material on window glass and window flange).
- Minimum curing time, Refer to MINIMUM CURING TIME
Gap dimension
- from window edge to rear window frame
- Set a constant dimension of 2.5 mm using the adjustment gauge 3371
Height dimension
- from window surface to upper edge of rear window frame
- Set a constant dimension of 2.5 mm using the adjustment gauge 3371
Rear Window Frame
Roof Center Section
Seal
- For roof center section
Gap dimension
- From window edge to roof center section
- Set a constant dimension of 8 mm using the adjustment gauge 3371
Height dimension
- From window surface to upper edge of roof center section
- Set a constant dimension of 2.5 mm using the adjustment gauge 3371
Sealing foam band
- D 542 025 A2
- Body Flange on Rear Window Frame, Preparing, Refer to REAR WINDOW BODY FLANGE, PREPARING FOR GLAZING
