Plenum Chamber Cover Assembly Overview

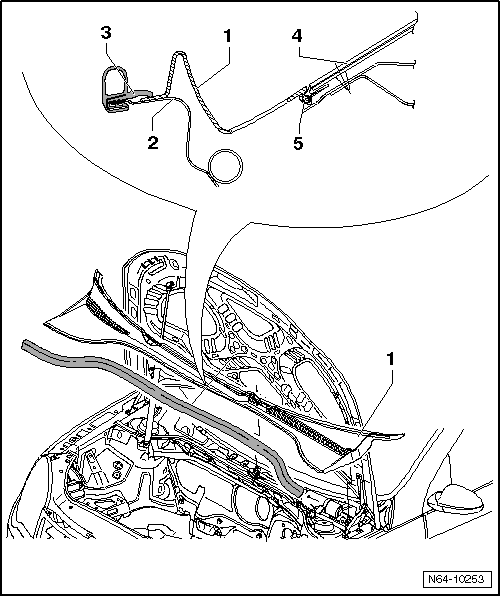

Fig 1: Identifying Assembly Overview: Plenum Chamber Cover
GWWN64-10253Courtesy of VOLKSWAGEN UNITED STATES, INC.
  1. Plenum chamber cover
    • Must only be pulled out of binding profile by hand.
  2. Plenum chamber - bulkhead
  3. Seal - plenum chamber
  4. Windshield
  5. Retainer
    • Is a part of the windshield
