Ignition Switch

Ignition Switch

Removal

- Remove the steering column trim.

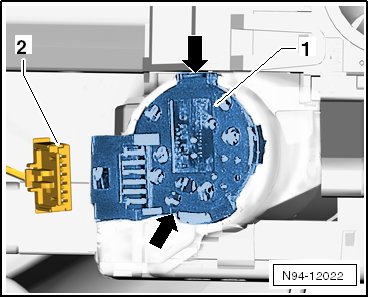

- Disconnect harness connector - 2 - from ignition/starter switch - 1 -.

Kostal:

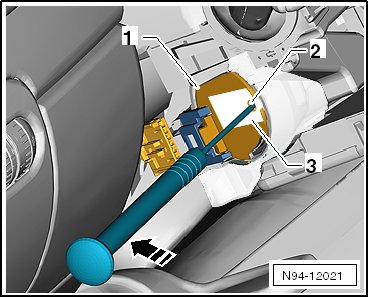

- Free up the hole - 2 - under the seal - 3 -.

- Remove the cover - 1 - in - direction of arrow - with a small screwdriver.






- Release the ignition switch with two small screwdrivers - arrows -.






- Pull out ignition/starter switch - 1 - from steering lock housing.

Installation

- Insert ignition/starter switch into steering lock housing until it engages audibly.

- Insert ignition key into lock cylinder and turn it into position Drive.






• Key must be located in Drive position.

Key positions of lock cylinder:

1 Position Off
2 Position Run
3 Position Start

- Install all components in reverse order of removal.
