Steering Control Module
Control modules in front part of vehicle
Power Steering Control Module -J500-
Component Location:
At steering on subframe, center -Arrow-
Pin Arrangements:
A - Power Steering Control Module -J500-
Connector:
B - 5-pin connector -T5g- on the wiring harness
C - 5-pin connector -T5h- on the wiring harness
D - 2-pin connector -T2a- on the wiring harness

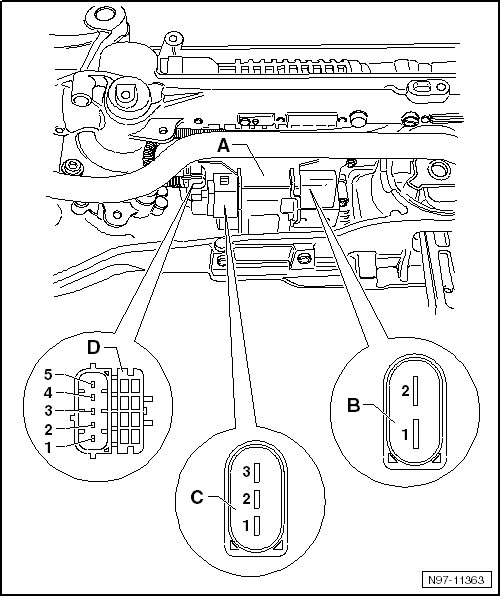

Pin Arrangements:
A - Power Steering Control Module -J500- on the wiring harness
Pin Connectors:
B - 2-pin connector -T2a- on the wiring harness
C - 3-pin connector -T3be- on the wiring harness
D - 5-pin connector -T5ab- on the wiring harness
