Front Passenger's Door Control Module -J387-







Control modules in rear part of vehicle

Front Passenger's Door Control Module -J387-

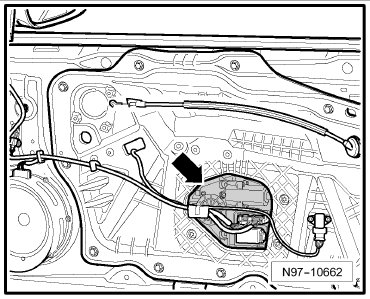

Component Location:


On subframe, in front passenger's door -Arrow-


Pin Arrangements:







A - Front Passenger's Door Control Module -J387-
Connector:

B - 32-pin connector -T32b-

C - 16-pin connector -T16g-

D - 20-pin connector -T20b-
