Keyless Entry Transmitter Battery: Description and Operation

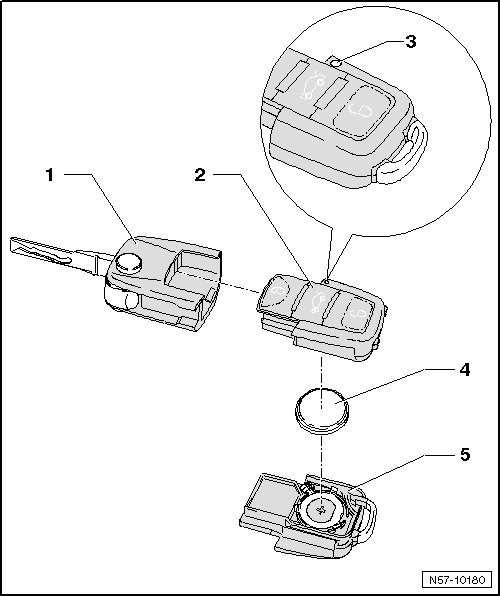

Folding Remote Control Key Battery Assembly Overview






1 Key with variable code transponder

2 Remote control key - upper section

3 LED

• This LED must blink when operating the remote control

• If LED does not blink when remote control is operated, the battery is completely discharged and must be replaced:

4 Battery

5 Remote control key - lower part
