Transmission Position Sensor/Switch: Adjustments

Multi-Function Transmission Range Switch Adjusting

Special tools, testers and auxiliary items required

• Setting gauge (T10173)

- Place the selector lever in the "N" position.

- Do not kink the selector lever cable.

Adjustment Prerequisites

• Selector lever cable is removed from the lever/shift rod

• Shift rod is in the "N" position

• Multi-Function transmission range switch (F125) bolts are loosened

• Lever/shift rod is removed

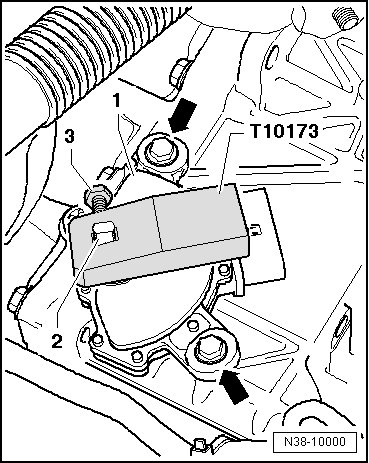

- Install the (T10173) onto the shift rod - 2 - and turn the multi-function switch - 1 - until the (T10173) engages on the tab of the connector at the multi-function switch.





- Secure the (T10173) to the shift rod - 2 - using bolt - 3 -.

- Tighten the bolts - arrows - to 6 Nm.

- Remove the (T10173).

- Further installation is performed in the reverse sequence, refer to => [ Installing ] Service and Repair.
