Operating Electronics And Telephone Control Module -J412-
Control modules in rear part of vehicle
Operating Electronics and Telephone Control Module -J412-

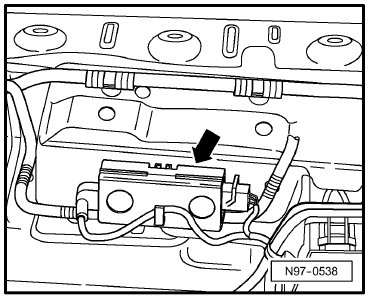

Component Location:
Below front right seat -Arrow-

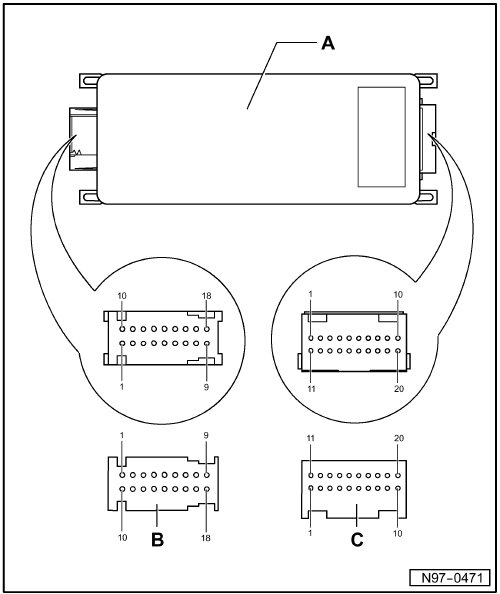

Pin Arrangements:
A - Operating Electronics and Telephone Control Module -J412-
Connector:
B - 18-Pin Connector -T18b-, on wiring harness
C - 20-Pin Connector -T20d-, on wiring harness
