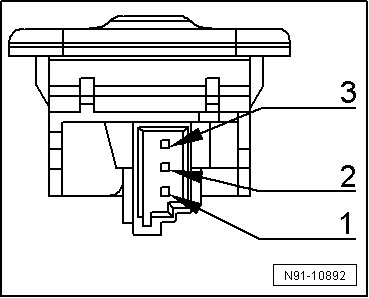

External Audio Source Connections Pin Assignment






External Audio Source Connections Pin Assignment





1. Left audio signal

2. Voltage supply, terminal 31, negative

3. Right audio signal
