External Audio Source Connection

Radio, Multimedia, Navigation

External Audio Source Connection

Special tools, testers and auxiliary items required

• Trim Removal Wedge (3409)

Removing

- Remove the center console extension.

- Press the socket clips - arrows - using trim removal wedge (3409) and remove the socket.

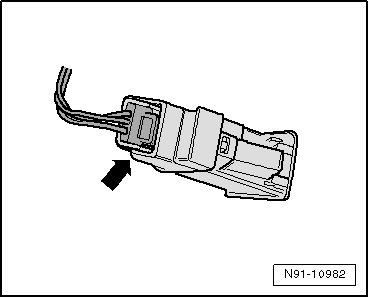

- Disconnect electrical connection - arrow -.





Installing

Install in reverse order of removal.
