Transmission, Transporting

Transmission, Transporting

Special tools, testers and auxiliary items required

• Shackle (10-222A/12)

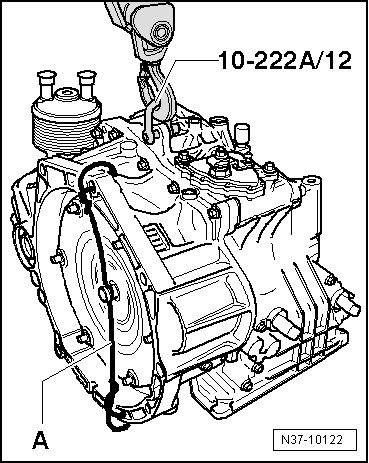

The (10-222A/12) can be used when transporting the transmission and for setting up the transmission support (3282).

- Secure the converter - arrow - from falling out using a wire - A - when transporting.





- Remember there is oil in the transmission. Do not turn the transmission with the vents facing downward when transporting or when it is on the assembly stand. The oil will leak out.
