Passive Occupant Detection System Overview

Airbag Systems

Passive Occupant Detection System Overview

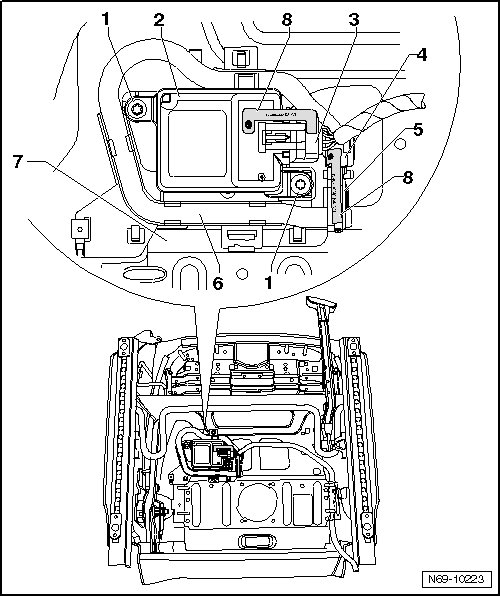

Seat occupied recognition control unit and Seat Occupied Recognition
Pressure Sensor







2 - Seat occupied recognition control unit -J706-
• Seat cushion, mat for seat occupied recognition, control unit and pressure sensor are complementary components and must not be separated
• Locations apply to both manual and power seats

5 - Pressure sensor for seat occupied recognition -G452-
• Seat cushion, mat for seat occupied recognition, control unit and pressure sensor are complementary components and must not be separated
• Locations apply to both manual and power seats

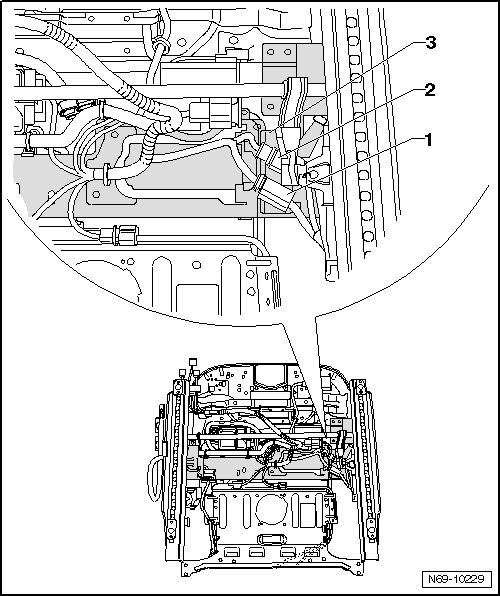

Seat belt force sensor for seat occupied recognition







1 - Seat belt force sensor for seat occupied recognition -G453-
• Integrated with Front passenger side belt switch -E25-
