Check Valve, Checking

Check Valve, Checking

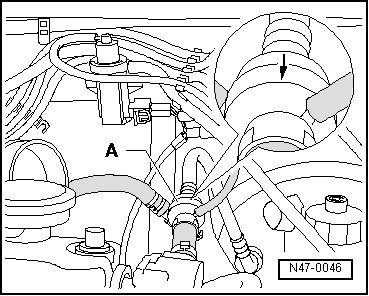

• The check valve - A - must allow air through in direction of arrow.

• Check valve must remain closed for opposite direction.

Observe correct installation position!
