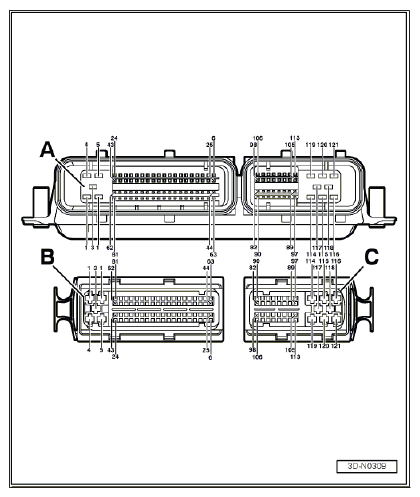

Engine Control Module (ECM) Connector Side Connector End View (J623)

Fig 1: Engine Control Module (ECM) Connector Side Connector End View (J623)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

A	Engine Control Module (ECM) connector side
B	Multi-pin connector, 81-pin
C	Multi-pin connector, 40-pin
